Angular 指令组合 API—hostDirectives

2023-03-10

原文在我的知乎：Angular hostDirective 详解

前言

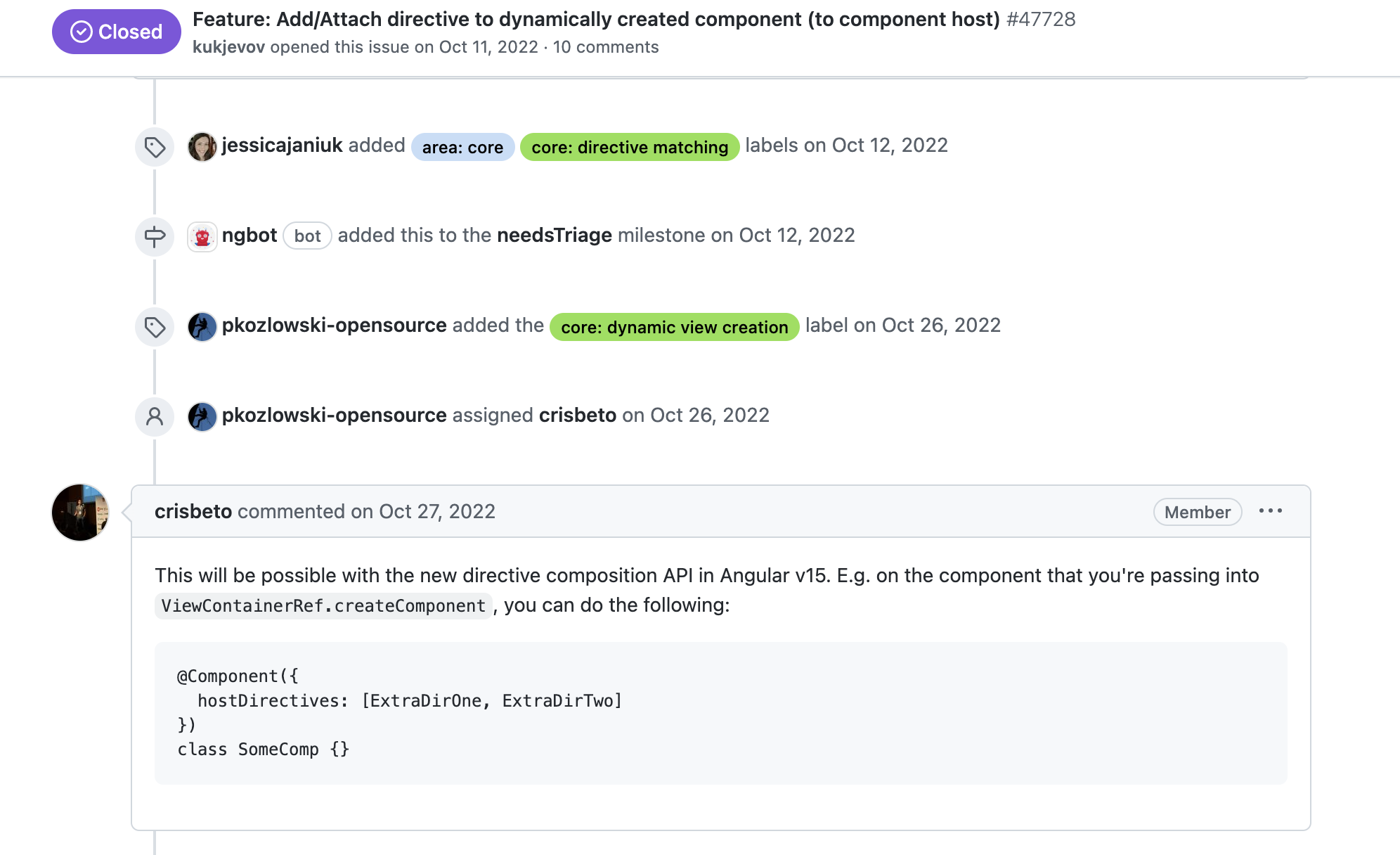

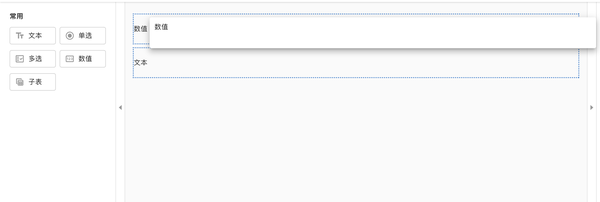

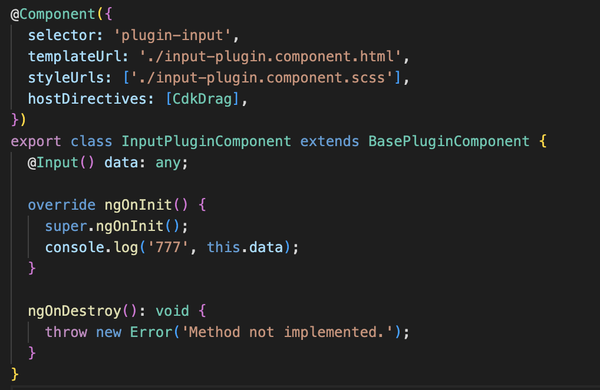

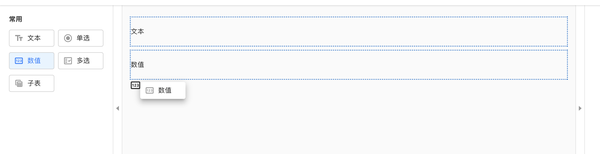

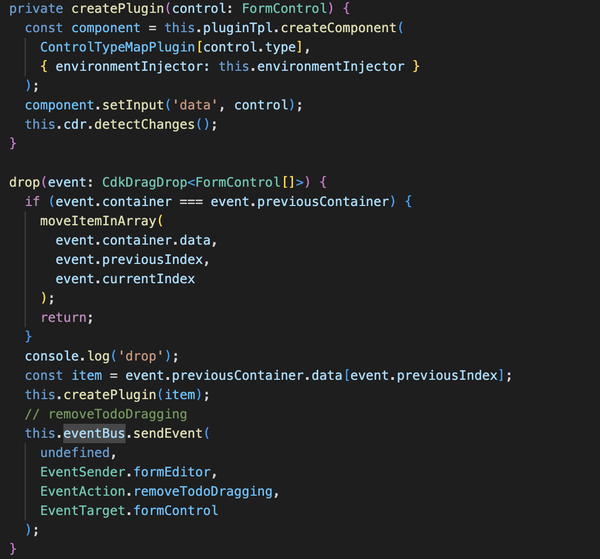

最近有一个需求是动态创建组件，然后给其组件添加指令，当时可难坏了，因为 createComponent API 不支持绑定指令，所以我当时猜想是否可以在 @Component 注入或 @HostBindingDirective 绑定实现呢？找了很久，最终发现官方支持了这种，选择的是前者，Feature Issue 如下：

具体详情：https://github.com/angular/angular/issues/47728

简介

hostDirectives 是以依赖注入（ @Component 装饰器）的方式给宿主绑定指令，该特性于 Angular 15 支持。

基本使用：

@Component({
  selector: 'app-demo',
  template: '<div></div>',
  hostDirectives: [CdkDrag]
})
export class DemoComponent {}

等价于

1	<app-demo cdkDrag></app-demo>

有些类似 host 属性（或@HostBinding('class') className = 'active'）和 <div class='active'></div> 的关系。

需要注意的点

Angular 会在编译时静态应用宿主指令。不能在运行时动态添加指令。

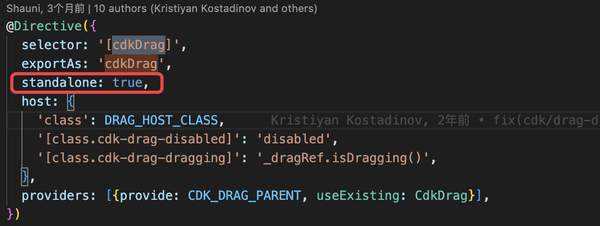

hostDirectives 中使用的指令必须是 standalone: true 。
Angular 会忽略 hostDirectives 属性中所应用的那些指令的 selector 。

还有个小区别是，hostDirectives 添加的指令不会给 dom 元素加上属性，不过这并不影响效果。

指令支持输入（属性）与输出（事件）

创建一个指令

import { Directive, EventEmitter, Input, OnInit, Output, ViewContainerRef } from '@angular/core';

@Directive({
  selector: '[one]',
  exportAs: 'one',
  standalone: true
})
export class DirectiveOne implements OnInit {
  @Input() public name: string;

  @Output() nameChange = new EventEmitter();

  constructor(private viewContainer: ViewContainerRef) {}

  ngOnInit(): void {
    console.log('one input name: ' + this.name);
    this.viewContainer.element.nativeElement.style = 'color: red;';
    setTimeout(() => {
      this.nameChange.emit('one name output');
    }, 1000);
  }
}

组件使用指令添加输入输出参数

@Component({
  selector: 'app-demo',
  standalone: true,
  imports: [DirectiveOne],
  hostDirectives: [
    {
      directive: DirectiveOne,
      inputs: ['name'],
      outputs: ['nameChange']
    }
  ],
  template: `脱我战时袍，著我旧时裳`,
})
export class DemoComponent {}

使用组件绑定输入属性和事件返回

import { Component, Input } from '@angular/core';
import { CommonModule } from '@angular/common';
import { bootstrapApplication } from '@angular/platform-browser';
import { DemoComponent } from './demo.component';

@Component({
  selector: 'my-app',
  imports: [CommonModule, DemoComponent],
  standalone: true,
  template: `
    <app-demo [name]="name" (nameChange)="change($event)"></app-demo>
  `,
})
export class App {
  @Input() name = 'Angular app';

  change(value) {
    console.log(value);
  }
}

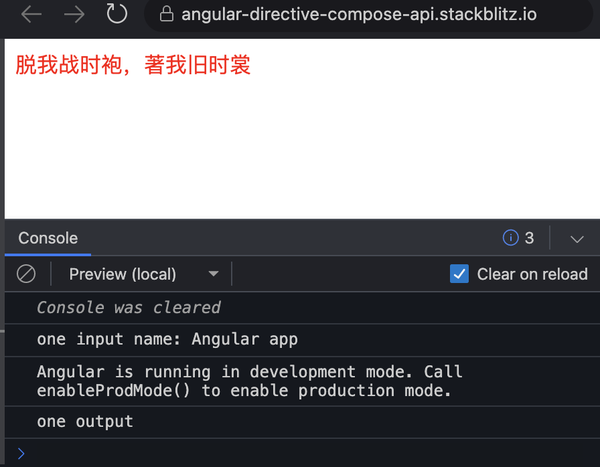

效果显示：

给输入输出起别名

{
      directive: DirectiveOne,
      inputs: ['name: Name'],
      outputs: ['nameChange: NameChange']
}

<app-demo [Name]="name" (NameChange)="change($event)"></app-demo>

指令中引入另一个指令

方便理解，我把这种叫做指令嵌套或指令继承

指令 DirectiveTwo

import { Directive } from '@angular/core';
import { DirectiveOne } from './directive-one';

@Directive({
  selector: '[two]',
  standalone: true,
  exportAs: 'two',
  hostDirectives: [DirectiveOne]
})
export class DirectiveTwo {}

组件使用指令

import { Component, Input } from '@angular/core';
import { DirectiveTwo } from './directive-two';

@Component({
  selector: 'app-demo',
  standalone: true,
  imports: [DirectiveTwo],
  hostDirectives: [DirectiveTwo],
  template: `脱我战时袍，著我旧时裳`,
})
export class DemoComponent { }

指令嵌套的执行顺序

以上述为例，大体的执行顺序为：DirectiveOne -> DirectiveTwo。

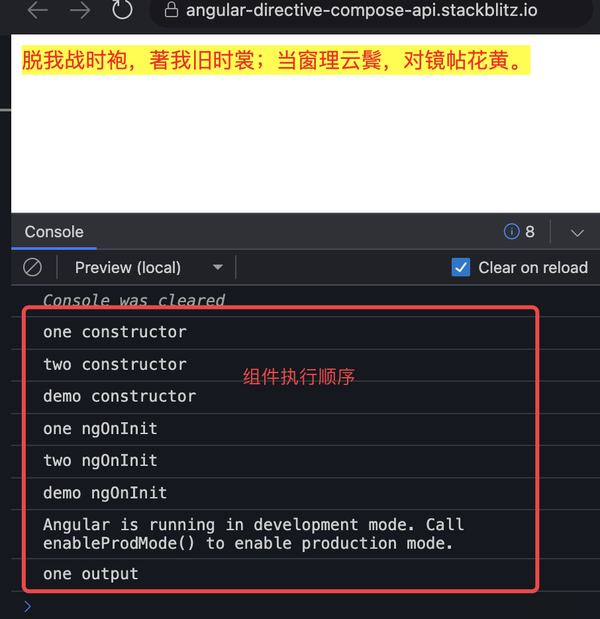

加上每个指令生命钩子后的顺序为：DirectiveOne constructor（初始化）-> DirectiveTwo constructor（初始化）-> DirectiveOne ngOnInit -> DirectiveTwo ngOnInit … 等等，这个顺序意味着后续的指令可以修改前面指令对宿主元素的操作。

示例如下：

DirectiveOne

import { Directive, EventEmitter, Input, OnInit, Output, ViewContainerRef } from '@angular/core';

@Directive({
  selector: '[one]',
  exportAs: 'one',
  standalone: true,
})
export class DirectiveOne implements OnInit {
  @Input() public name: string;
  @Output() nameChange = new EventEmitter();
  constructor(private viewContainer: ViewContainerRef) {
    console.log('one constructor');
  }
  ngOnInit(): void {
    console.log('one ngOnInit');
    // console.log('one input name: ' + this.name);
    this.viewContainer.element.nativeElement.style = 'color: red;';
    setTimeout(() => {
      this.nameChange.emit('one output');
    }, 1000);
  }
}

DirectiveTwo

import { Directive, EventEmitter, Input, OnInit, Output, ViewContainerRef } from '@angular/core';
import { DirectiveOne } from './directive-one';

@Directive({
  selector: '[two]',
  standalone: true,
  exportAs: 'two',
  hostDirectives: [
    {
      directive: DirectiveOne,
      inputs: ['name'],
      outputs: ['nameChange']
    }
  ]
})
export class DirectiveTwo implements OnInit {
  @Input() public name = '';
  @Output() nameChange = new EventEmitter();
  constructor(private viewContainer: ViewContainerRef) {
    console.log('two constructor');
  }
  ngOnInit(): void {
    console.log('two ngOnInit');
    // 覆盖宿主元素
    this.viewContainer.element.nativeElement.innerHTML += '；<span>当窗理云鬓，对镜帖花黄</span>。';
    this.viewContainer.element.nativeElement.style = 'color: red; background-color: yellow;';
  }
}

组件使用指令

import { Component } from '@angular/core';
import { DirectiveTwo } from './directive-two';

@Component({
  selector: 'app-demo',
  standalone: true,
  imports: [DirectiveTwo],
  hostDirectives: [
    {
      directive: DirectiveTwo,
      inputs: ['name'],
      outputs: ['nameChange']
    }
  ]
  template: `脱我战时袍，著我旧时裳`
})
export class DemoComponent {
  constructor() {
    console.log('demo constructor');
  }

  ngOnInit() {
    console.log('demo ngOnInit');
  }
}

使用组件

@Component({
  selector: 'my-app',
  imports: [CommonModule, DemoComponent],
  standalone: true,
  template: `
    <app-demo [name]="name" (nameChange)="change($event)"></app-demo>
  `,
})
export class App {
  @Input() name = 'Angular app';
}
